Flexible LED Tail Light Bar Strip – Brake, Turn Signal, Reverse & DRL, IP67, 12–24V, 1M–2.4M

One Strip. Four Functions. Brake, Turn Signal, Reverse, and DRL.

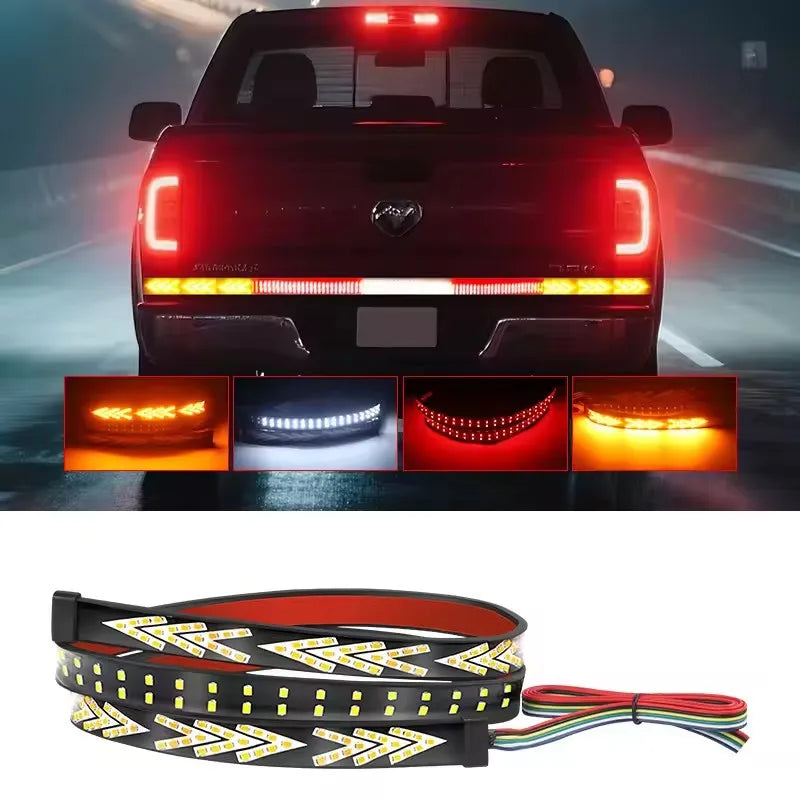

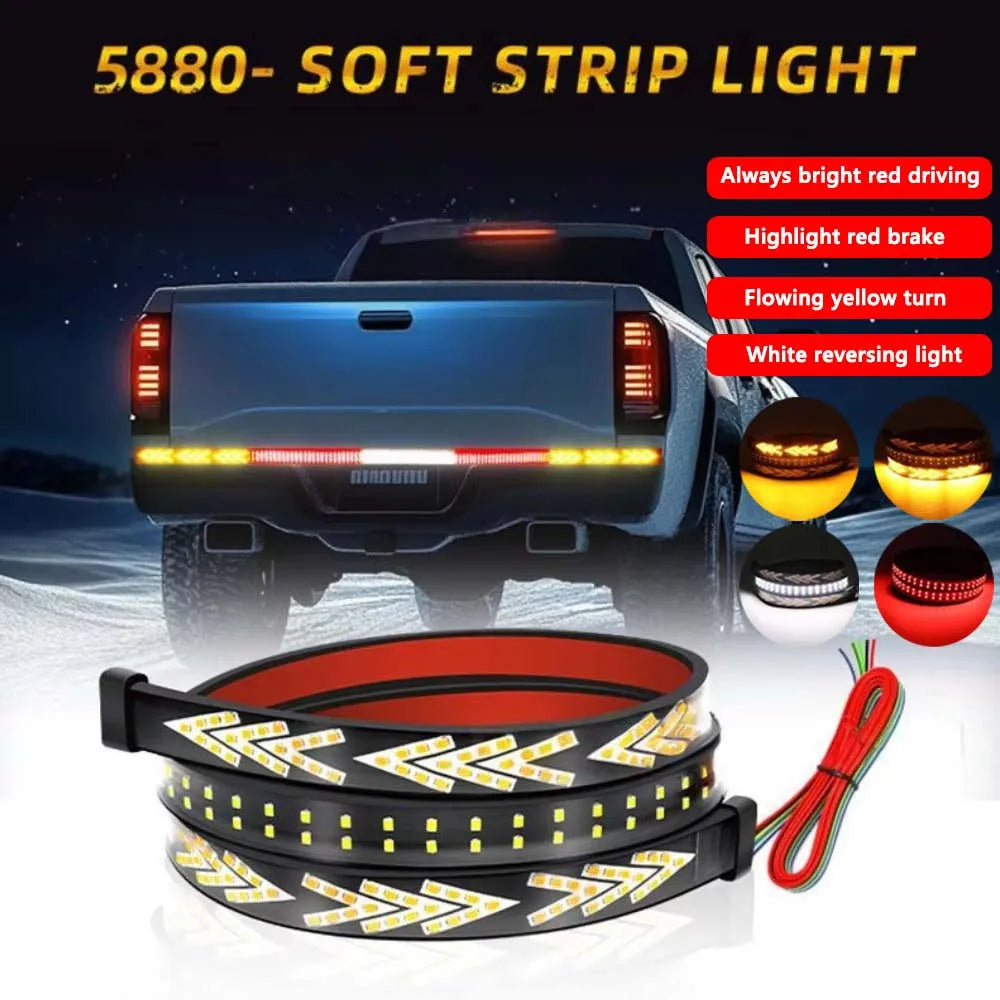

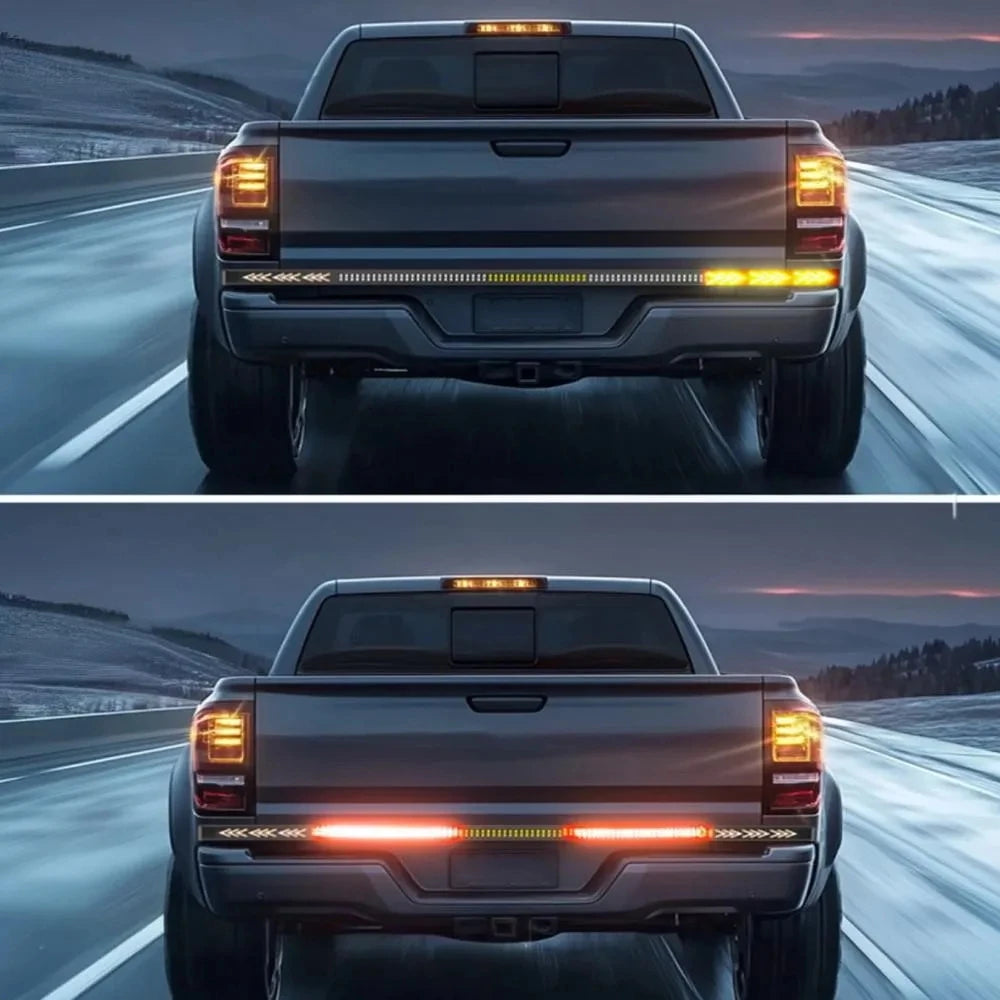

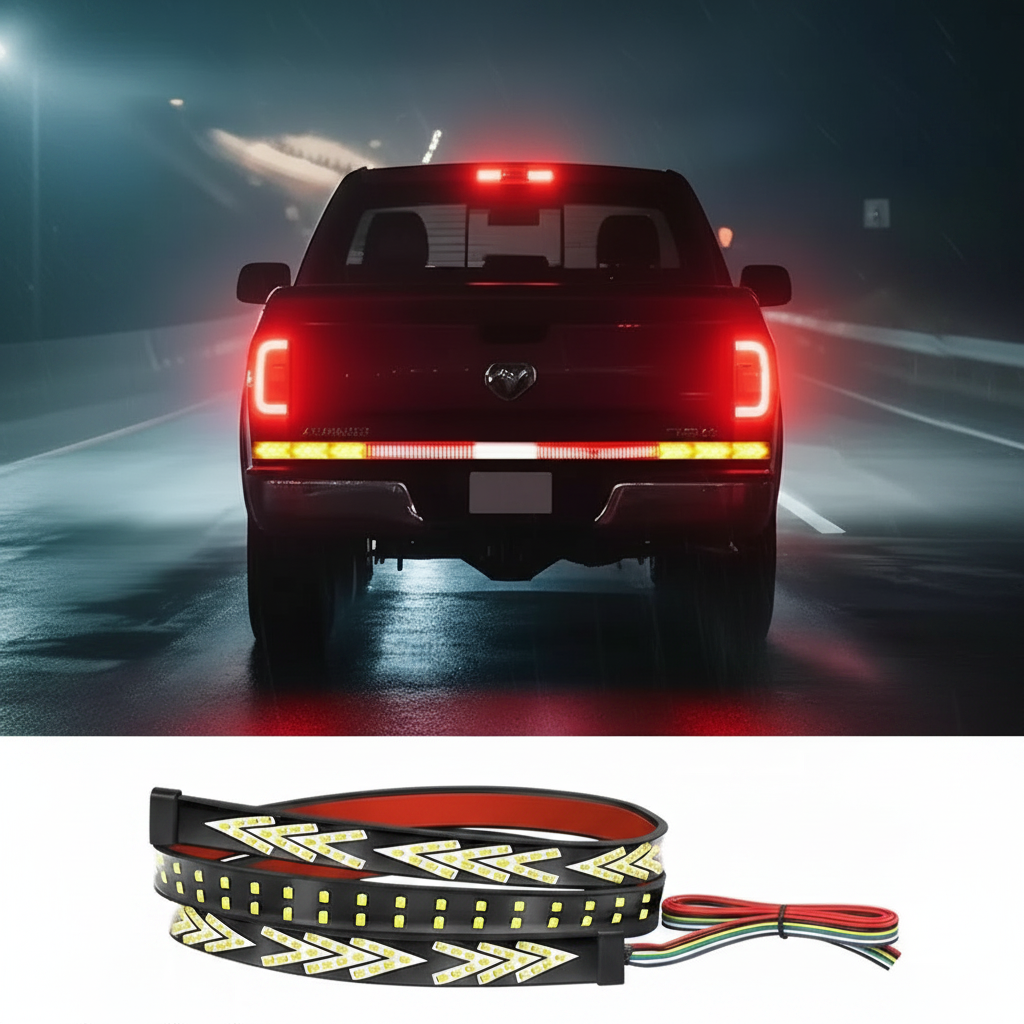

This flexible LED tail light bar strip combines four rear lighting functions into a single 5-wire strip: brake light (red), turn signal (yellow), reverse light (white), and DRL (white/always-on). A 6th wire provides a ground connection. Mount it across the full tailgate width, along the rear bumper edge, or on the truck bed rail for a clean, integrated look that replaces or supplements factory tail lighting. IP67 waterproof, rated for 12–24V, and available in 7 lengths from 1M to 2.4M to fit trucks, trailers, pickup beds, RVs, and heavy vehicles.

Key Features

• 4-in-1 Function — Single strip handles brake light, turn signal, reverse light, and DRL — all controlled via 5 independent wires for direct integration with the vehicle's existing lighting circuit
• 3-Color Output — Red (brake/tail), Yellow/Amber (turn signal), White (reverse and DRL) — each color activates independently based on the wired circuit

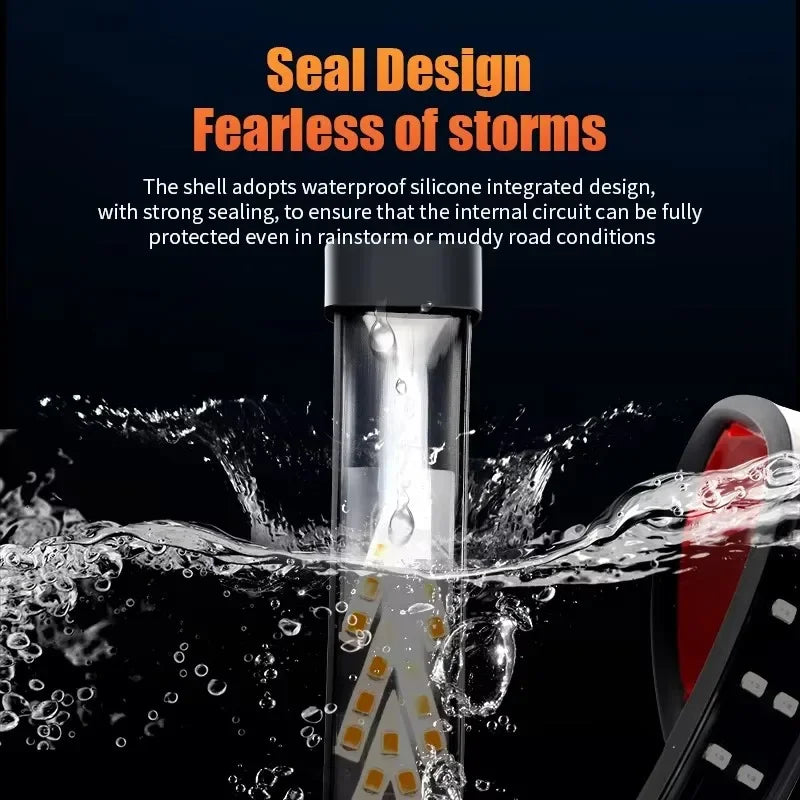

• IP67 Waterproof — Fully sealed against dust and water. Suitable for exterior rear mounting on trucks, trailers, and RVs exposed to rain, mud, and road spray
• 12–24V Dual Voltage — Compatible with both 12V passenger vehicles and 24V commercial trucks, trailers, and heavy equipment
• Flexible PC+ABS Strip — Flexible construction conforms to curved or angled mounting surfaces including tailgates, bed rails, and bumper edges
• 7 Length Options — Choose from 1M, 1.2M, 1.5M, 1.8M, 2M, 2.2M, or 2.4M to match the width of your vehicle's rear
• Universal Fitment — Designed for trucks, pickup trucks, trailers, RVs, Jeeps, vans, and all 12–24V vehicles

Choose Your Length

• 1M (39.4") — Compact vehicles, motorcycle trailers, small utility trailers
• 1.2M (47.2") — Mid-size trucks, compact pickup trucks
• 1.5M (59.1") — Full-size pickup trucks (standard cab)
• 1.8M (70.9") — Full-size pickup trucks, vans
• 2M (78.7") — Large trucks, medium trailers
• 2.2M (86.6") — Wide trailers, RVs, heavy-duty trucks
• 2.4M (94.5") — Full-width trailer bars, extra-wide vehicles

Wiring Guide

This strip uses 5 signal wires + 1 ground. Connect each wire to the corresponding circuit in the vehicle:

Connect brake light function to the Red wire via the vehicle's brake light circuit for brake activation.

Product Specifications

• Material: PC + ABS flexible housing
• Light Colors: Red (brake/tail) + Yellow/Amber (turn signal) + White (reverse/DRL)
• Waterproof Rating: IP67
• Voltage: 12–24V DC
• Wiring: 6 wires (5 signal + 1 ground)
• Available Lengths: 1M / 1.2M / 1.5M / 1.8M / 2M / 2.2M / 2.4M
• Weight: 0.3 kg per unit
• Application: Trucks, pickup trucks, trailers, RVs, Jeeps, vans, heavy vehicles
• Fitment: Universal — all 12–24V vehicles

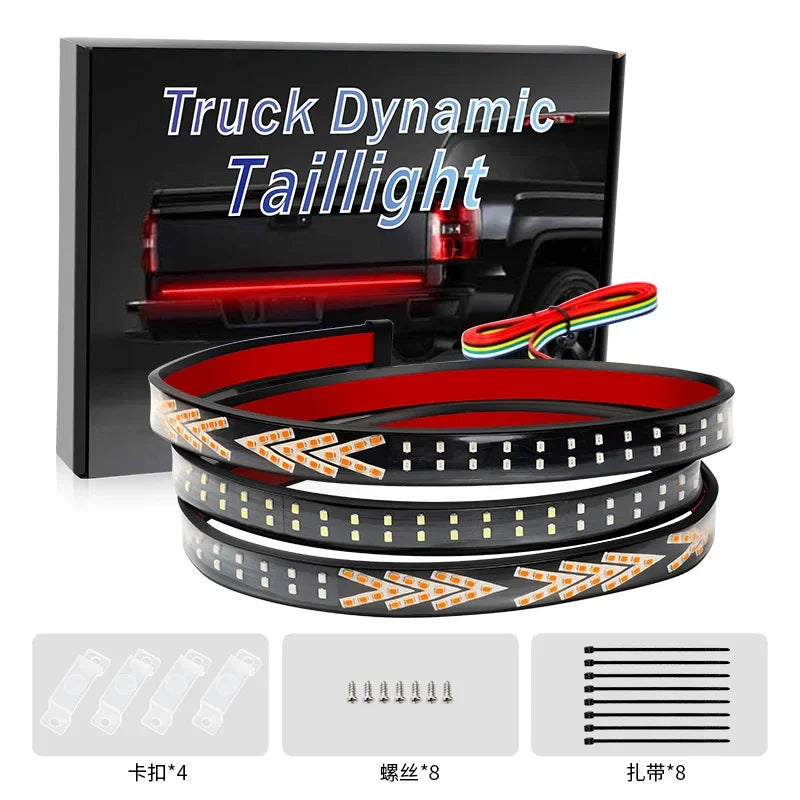

Package Includes

• 1 × Flexible LED Tail Light Bar Strip (length per selected option)

Frequently Asked Questions

Q: How do I know which length to choose?
A: Measure the width of your vehicle's tailgate or rear bumper where you plan to mount the strip. Select the length closest to that measurement. The strip can be trimmed at designated cut points if needed.

Q: Does this replace my existing tail lights?
A: This strip is designed to supplement or replace a bar-style tail light across the rear of a truck, trailer, or RV. It is not a direct replacement for factory OEM tail light assemblies on passenger cars. Check local regulations before using as a primary tail light on public roads.

Q: Is the wiring plug-and-play or does it require splicing?
A: The strip uses bare wire ends that connect to your vehicle's existing lighting circuit via splicing or a wiring harness. Basic automotive wiring knowledge is required for installation.

Q: Does the turn signal flash sequentially (arrow effect)?
A: Sequential arrow-style turn signal activation depends on the turn signal controller in your vehicle. The strip's yellow zone will activate with your vehicle's turn signal circuit — sequential effect requires a sequential turn signal module (not included).
